What transforms a standard metal component into a strong, aesthetically pleasing, and durable product? The technique behind it is a cornerstone for the lifespan and enhancing the performance of metal components in various industries.

As an expert in the field of metal surface treatments, I bring years of experience and a deep understanding of anodizing techniques.

Anodizing stands out as a transformative electrochemical process, creating a strong and corrosion-resistant oxide layer on metal surfaces, particularly aluminum.

In this ultimate guide, we will explore the anodizing process, its applications across various industries, and how it adds value to metal products. You’ll gain insights into how this can be a game-changer for business.

So let’s get started!

1. The Science Behind Anodizing

Anodizing is fundamentally an electrochemical process that converts the metal surface into a decorative, durable, corrosion-resistant, anodic oxide finish. This is primarily achieved through the process of controlled oxidation, the same natural occurrence that forms rust on iron or tarnishes silver. However, unlike these forms of corrosion, anodizing is controlled and conducted in a protective manner.

The metal, typically aluminum, acts as the anode in an electrolytic cell. When exposed to this environment, oxygen ions from the electrolyte combine with the aluminum atoms at the surface, forming aluminum oxide. This layer is fully integrated with the underlying metal, resulting in a hard, protective finish. The thickness and properties of the anodic layer can be precisely controlled through the anodizing process.

Variables such as the composition of the electrolyte, temperature, and voltage applied directly influence the characteristics of the final product. The resulting anodic oxide structure forms a porous layer that can be dyed or sealed to enhance its appearance and durability. Unlike paint or plating, which can chip or wear off, an anodized finish is fused to the metal surface, providing a significantly more durable and long-lasting finish.

2. Benefits of Anodizing

Understanding the science of anodizing naturally leads to exploring its numerous advantages in practical applications. Anodizing offers a lot of benefits that cater to various industrial needs. Here are some:

• Enhanced Durability: Anodized finishes are renowned for their increased resistance to wear and tear. This treatment significantly reduces the risk of scratches, chipping, and peeling, ensuring a longer lifespan for the product.
• Corrosion Resistance: The anodic layer acts as a barrier, protecting the metal from corrosive environments. This feature is particularly beneficial in industries where metal components are exposed to harsh conditions.
• Aesthetic Flexibility: Anodizing allows for a variety of color finishes, offering versatility in design and aesthetic appeal. This flexibility is crucial for industries focusing on both function and form in their products.
• Improved Adhesion: Anodized surfaces provide an excellent foundation for adhesives and paint, enhancing the effectiveness and longevity of these applied materials.
• Electrical Insulation: The anodic layer also serves as an effective insulator, making anodized components suitable for electrical applications where non-conductivity is required.
• Eco-Friendly Process: Anodizing is a more environmentally friendly option compared to other metal finishing processes. It produces fewer harmful by-products and requires less energy consumption.
• Customization: A customized approach ensures that each project is tailored to meet the unique demands of all clients, delivering optimal results.

3. Types of Anodizing

Having established the benefits of anodizing, it’s important to delve into the different types available in the industry. Anodizing can be categorized into several types. Here are the three primary:

Chromic Acid Anodizing

Chromic acid anodizing, also known as Type I, is the original anodizing process. This method uses chromic acid to create a thin and dense layer of oxide on the surface of the metal. The key characteristic of Type I is its minimal impact on the metal’s dimensions, making it ideal for components with tight tolerances. The oxide layer produced is typically thinner than other types, ranging from 0.5 to 1 micron.

Sulfuric Acid Anodizing

Type II, or sulfuric acid anodizing, is the most common form of anodizing. One study found that sulfuric acid of 10-20 percent concentration has traditionally been used to produce relatively thick or abrasion resistant coatings. A more dilute, that is five weight percent, sulfuric acid anodizing process which produces a thinner coating than Type II or III with nickel acetate as the sealant has been developed.

Hardcoat Anodizing

Type III, often referred to as hardcoat anodizing, creates the thickest oxide layers, usually ranging from 25 to 150 microns. This type employs a specialized process that generates a hard, wear-resistant layer on the aluminum surface. An example of its application can be seen in the manufacturing of gears and pistons, where the added durability significantly extends the lifespan of these components under tough use.

4. Materials Suitable for Anodizing

Knowing the different types of anodizing, we will go to the several materials that are suitable for this process, each bringing distinct advantages. Here are the materials that respond well to anodizing:

• Aluminum: The most widely anodized material, aluminum is ideal for this process due to its inherent properties. Anodizing enhances aluminum’s natural corrosion resistance and allows for a wide range of color finishes, making it a versatile choice for numerous applications.

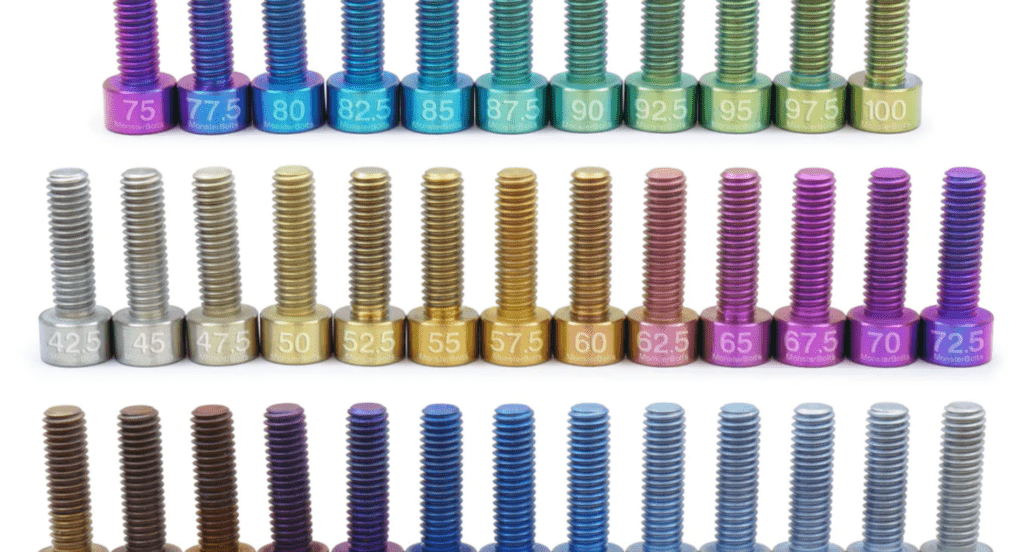

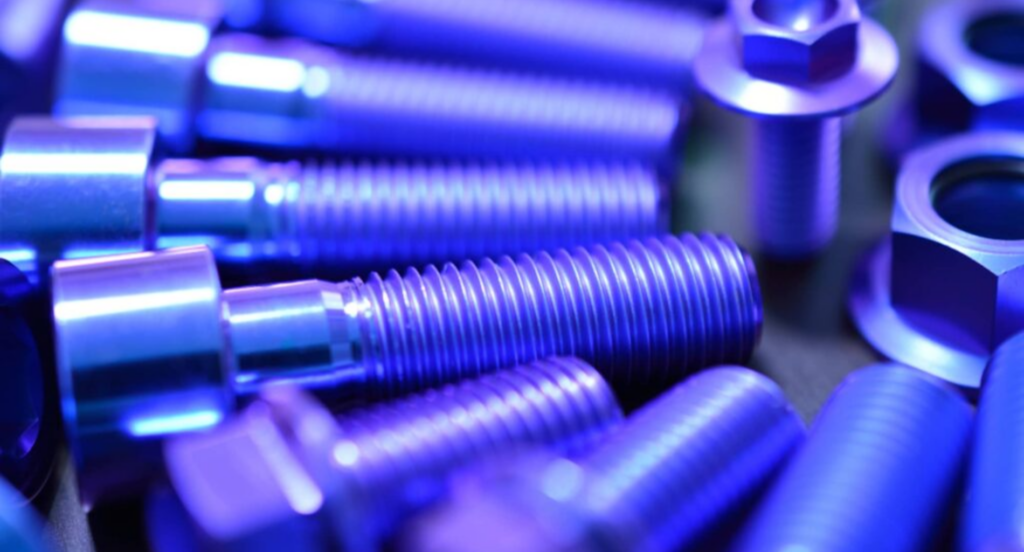

• Titanium: Known for its strength and lightweight properties, titanium can also be anodized. Anodizing titanium enhances its corrosion resistance and can produce various color finishes without dyes, depending on the oxide thickness.

• Magnesium: While less common, magnesium can be anodized to improve its corrosion resistance and surface hardness. However, due to its high reactivity, special care is required during the anodizing process.
• Zinc: Zinc, often used in die-casting, can benefit from anodizing. This process can improve its wear resistance and provide a protective layer that enhances the material’s durability.

5. The Anodizing Process

Understanding the materials suitable for anodizing sets the stage for a closer look at the anodizing process itself. The anodizing process involves several key steps. Below are the essential stages:

#1 Cleaning

The first step in anodizing is thorough cleaning. This is crucial to remove any contaminants that could interfere with the anodizing process. Typically, materials undergo a degreasing treatment using organic solvents or alkaline solutions. Personally, I’ve found that thorough cleaning is the cornerstone of a successful anodizing outcome. Any residue or oils left on the surface can lead to uneven coatings and subpar finishes.

#2 Pre-Treatment

Pre-treatment is a crucial step in the anodizing process, involving the preparation of the material’s surface. This stage may include etching, which creates a matte finish, or brightening for a glossy appearance. Zemetal offers specialized pre-treatment services to ensure the material is perfectly primed for anodizing, setting the stage for an optimal final product.

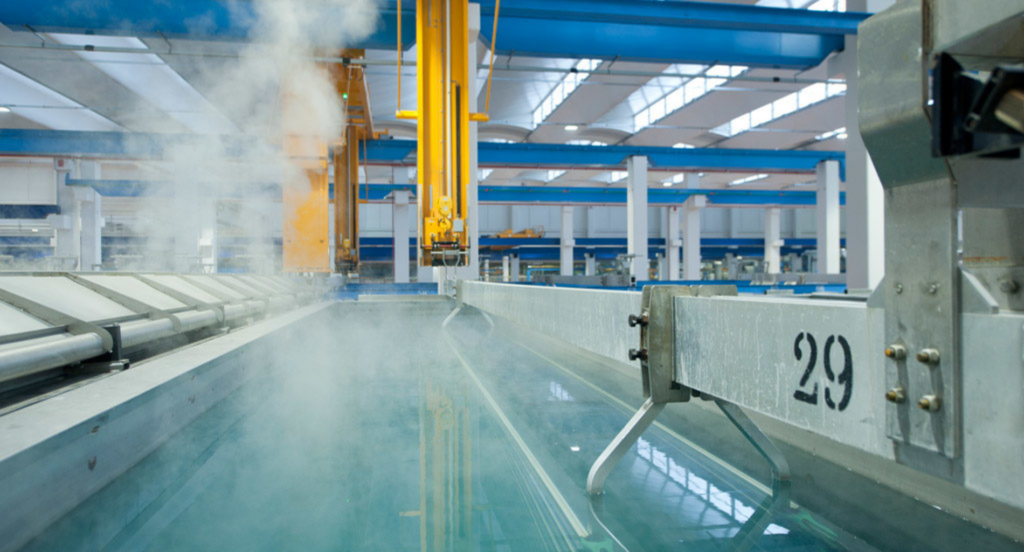

#3 Anodizing

This is the core of the process. The material, now acting as an anode, is submerged in an electrolyte bath, usually sulfuric acid for Type II anodizing. An electric current is then applied, leading to the formation of an oxide layer. This stage requires precise control over variables like temperature, voltage, and time to achieve the desired result. Zemetal’s expertise in managing these parameters ensures top-tier anodizing results.

#4 Coloring (Optional)

After the formation of the oxide layer, some applications may require coloring. This step is optional and depends on the aesthetic requirements of the project. The open nature of the anodized layer allows for the absorption of dyes, enabling a wide range of color options. It’s a transformational stage where metal gets to do its vibrant new color.

#5 Sealing

The final stage is sealing, which is essential to lock in the color (if applied) and enhance the corrosion resistance of the anodized layer. The material is usually immersed in hot water or a sealing solution, which closes the pores in the oxide layer. This step not only protects the finish but also prolongs the lifespan of the material. Sealing is akin to signing off on a masterpiece, ensuring its beauty and integrity are preserved.

6. Industrial Applications of Anodizing

Now that we have a comprehensive understanding of the anodizing process, it’s fascinating to explore its diverse industrial applications. See the following details below:

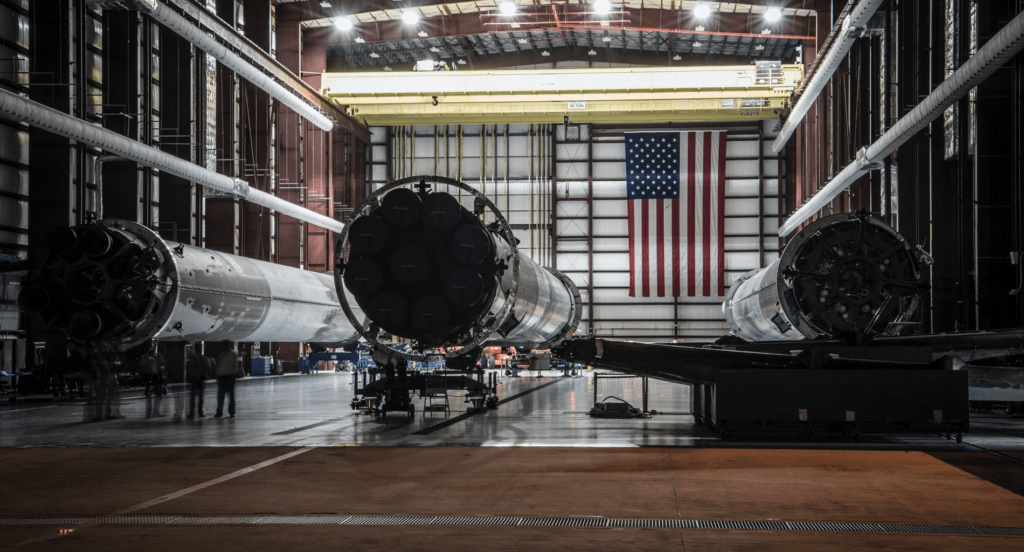

Aerospace and Aviation

In the aerospace and aviation industries, the durability and corrosion resistance offered by anodizing are paramount. Components like airframe structures, landing gear, and cabin parts are routinely anodized to withstand the extreme conditions they encounter. The lightweight nature of anodized aluminum, coupled with its strength, plays a critical role in enhancing the efficiency and safety of aircraft.

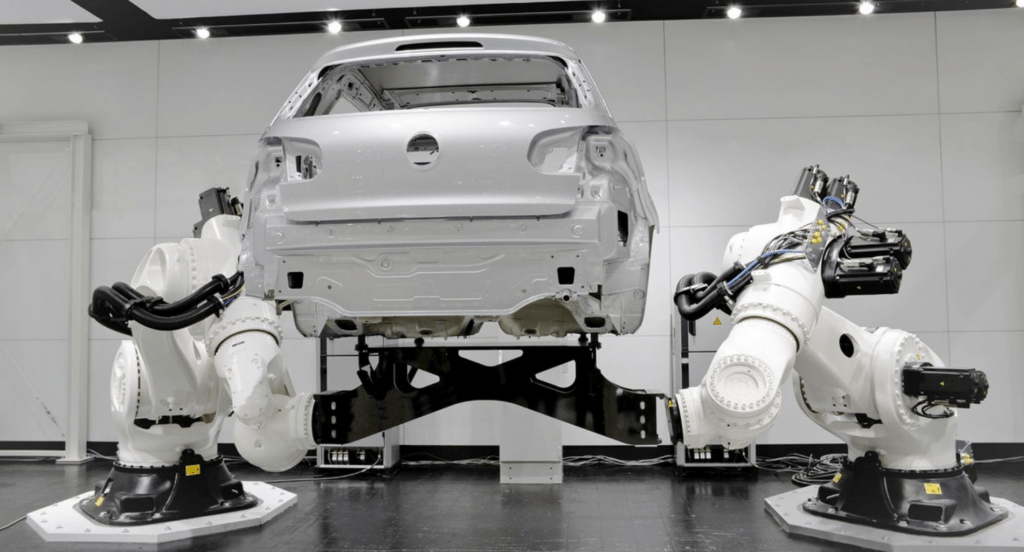

Automotive Industry

Anodizing finds extensive application in the automotive sector, especially in enhancing the durability and aesthetic appeal of parts. From engine components to trim pieces and wheels, anodizing is used to improve corrosion resistance and wear properties. Personally, I’ve always been impressed by the sleek, durable finish it provides to automotive parts, contributing significantly to both performance and style.

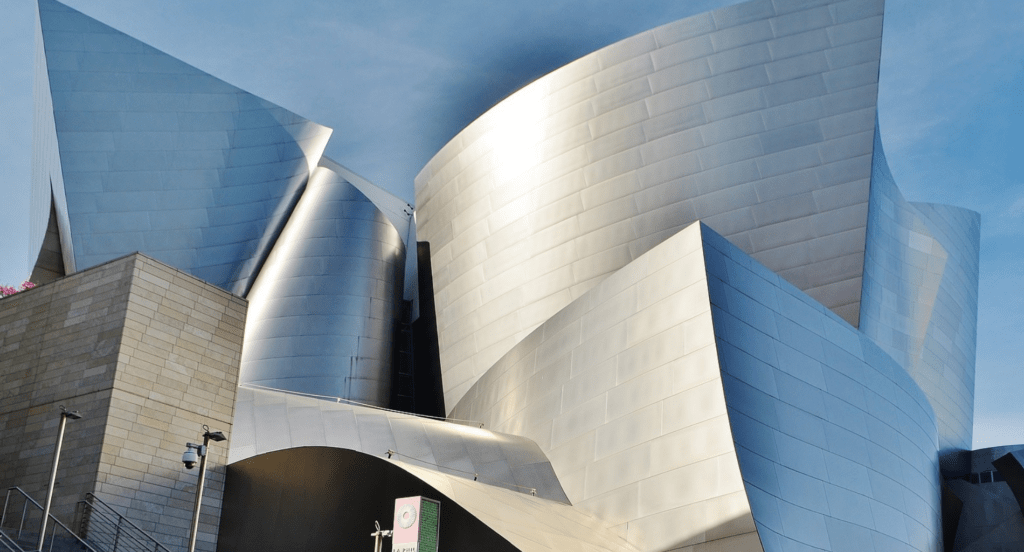

Architectural and Building

In architecture, anodizing is used to create durable, attractive finishes on building components like window frames, exteriors, and railings. Its ability to withstand environmental factors, including UV exposure and weathering, makes it an excellent choice for exterior applications. From a personal perspective, it’s always satisfying to see how anodized components blend functionality with aesthetics.

Electronics and Consumer Goods

The electronics industry widely uses anodizing for components like enclosures, heat sinks, and structural parts. Anodized finishes provide not only an appealing look but also enhance the heat-dissipation properties of components. This is crucial in devices where maintaining operational temperature is key. Additionally, the process is used in consumer goods, such as kitchen appliances and sporting goods.

7. Common Issues and Troubleshooting in Anodizing

While the industrial applications of anodizing are vast, it’s also important to recognize potential challenges and solutions in the process. Listed are the common issues and their respective troubleshooting strategies:

Uneven or Streaky Anodized Finish

Issue: One of the most common problems in anodizing is an uneven or streaky finish. This can be caused by inconsistent surface preparation, irregularities in the metal, or uneven electrical current distribution during the anodizing process.

Troubleshooting: To address this, ensure uniform cleaning and pre-treatment of the metal surface. Regular maintenance of the anodizing bath and equipment, including anode-cathode balance, is also crucial. It’s a thorough process, but attention to these details can significantly improve the consistency of the finish.

Poor Adhesion of Anodic Layer

Issue: Sometimes, the anodized layer may exhibit poor adhesion, leading to flaking or peeling. This can result from contamination on the metal surface, inadequate cleaning, or improper sealing post-anodizing.

Troubleshooting: Ensuring thorough and proper cleaning of the metal prior to anodizing is key. Additionally, optimizing the sealing process, including time and temperature controls, can enhance layer adhesion. In my experience, perfecting these steps can be the difference between a substandard finish and a superior one.

Color Variation in Dyed Anodizing

Issue: Achieving consistent color in dyed anodizing can be challenging. Variations can occur due to differences in the metal alloy, inconsistencies in the anodizing process, or variations in dye concentration.

Troubleshooting: Standardizing the anodizing process parameters and using consistent dye batches are critical. It’s also important to source metal from reliable suppliers to ensure uniformity in material quality. As someone who appreciates the beauty of perfectly anodized products, I find that controlling these variables is essential for achieving uniform color.

8. 4 Factors Affecting Anodizing Quality

After exploring common issues and their solutions in anodizing, it becomes clear that several factors influence the quality of the anodizing process. See the following key factors:

#1 Quality of the Base Metal

The base metal’s quality is fundamental in determining the final outcome of anodizing. Impurities, alloy composition, and the physical condition of the metal can all impact the anodizing process. Using high-purity, high-quality, and strongest metals is crucial for achieving a uniform and durable anodic layer.

#2 Surface Preparation

Surface preparation is a critical step that directly affects anodizing quality. Any surface contaminants, oils, or residues can lead to defects in the anodized layer. Proper cleaning and pre-treatment, including degreasing and etching, are essential for preparing the metal surface for anodizing. I have observed that thorough surface preparation can make a significant difference in the quality of the anodized finish.

This table outlines the essential steps and their importance in surface preparation for anodizing, a process crucial for achieving a high-quality finish.

#3 Anodizing Process Parameters

The specific parameters of the anodizing process, such as electrolyte composition, temperature, and current density, are important. Even slight variations can lead to differences in the thickness, hardness, and color of the anodized layer. Therefore, precise control and consistency in these parameters are paramount for high-quality anodizing.

#4 Post-Anodizing Treatment

Post-anodizing treatments, such as sealing and dyeing, greatly influence the final appearance and durability of the anodized product. For example, improper sealing can result in a finish that is less resistant to corrosion and wear. Ensuring these post-treatment processes are carried out correctly is crucial for enhancing the anodized product’s longevity and aesthetic appeal.

Conclusion

To sum it up, this comprehensive guide to anodizing offers an in-depth look into its complexities, benefits, and applications, equipping businesses with the knowledge to make informed decisions about their metal fabrication needs.

For those seeking expert anodizing services, Zemetal is here to provide top-tier solutions tailored to all specific requirements. To explore our services and how we can assist you, please feel free to contact us.
